inflatable membrane structure material

Inflatable membrane structure material is a special building material, mainly used to construct aerated membrane structure buildings, belongs to an important branch of light space structure. This material is usually made of high-strength, high-elastic polyester fiber or other polymer materials, which has the advantages of lightweight, environmentally friendly, easy to clean and maintain, and forms the structure of the house by filling it with air. The PVC inflatable membrane for the building structure is made of waterproof PVC coated fabric, and the air structure is a half-end structure, mainly including the ground foundation system, air supply system, air conditioning system and lighting system. Air structures last longer and are more durable than inflatable tents, but they are also more expensive. The air structure usually covers a large area and is used for sports competitions such as tennis court structure, football field structure, and ice rink structure. We have a variety of combinations to suit your different uses and budgets.
High strength to prevent any damage during installation; Outdoor life assurance, good weather resistance (3-5 years); Adopt special treatment for different industries; Special treatment: flame retardant, anti-static, anti-cold, anti-mildew, etc. Inflatable membrane structure has a variety of shapes and superior architectural and structural characteristics, mainly including tension membrane structure, skeleton membrane structure, inflatable membrane structure and cable truss membrane structure. Air membrane, also known as Air Dome, is an architectural form that has emerged with the development of new materials and new technologies. It uses a special building fiber membrane as the "shell" and supports the "shell" through an automated pressurization and fresh air system, thus forming the building space. Inflatable membrane structure is a new architectural form integrating architecture, structural mechanics, new material science, mechatronics and automatic control technology. Inflatable film structure buildings are widely used in various fields, such as gas film coal shed in coal industry, gas film gymnasium in sports projects, gas film storage in logistics projects, etc. This kind of building form integrates architecture, structural mechanics, new materials, mechatronics, automatic control and other technologies, and has broad market prospects. In general, the inflatable membrane structural material is a kind of building material with high strength, high elasticity, lightweight, environmental protection and other characteristics, which is suitable for the construction of various aerated membrane structural buildings.
Page name: Inflatable membrane structure material
Column title: The same brief introduction
Column description: the same simple introduction

Inflatable membrane structure material is a special building material, mainly used to construct aerated membrane structure buildings, belongs to an important branch of light space structure. This material is usually made of high-strength, high-elastic polyester fiber or other polymer materials, which has the advantages of lightweight, environmentally friendly, easy to clean and maintain, and forms the structure of the house by filling it with air. The PVC inflatable membrane for the building structure is made of waterproof PVC coated fabric, and the air structure is a half-end structure, mainly including the ground foundation system, air supply system, air conditioning system and lighting system. Air structures last longer and are more durable than inflatable tents, but they are also more expensive. The air structure usually covers a large area and is used for sports competitions such as tennis court structure, football field structure, and ice rink structure. We have a variety of combinations to suit your different uses and budgets.

High strength to prevent any damage during installation; Outdoor life assurance, good weather resistance (3-5 years); Adopt special treatment for different industries; Special treatment: flame retardant, anti-static, anti-cold, anti-mildew, etc. Inflatable membrane structure has a variety of shapes and superior architectural and structural characteristics, mainly including tension membrane structure, skeleton membrane structure, inflatable membrane structure and cable truss membrane structure. Air membrane, also known as Air Dome, is an architectural form that has emerged with the development of new materials and new technologies. It uses a special building fiber membrane as the "shell" and supports the "shell" through an automated pressurization and fresh air system, thus forming the building space. Inflatable membrane structure is a new architectural form integrating architecture, structural mechanics, new material science, mechatronics and automatic control technology. Inflatable film structure buildings are widely used in various fields, such as gas film coal shed in coal industry, gas film gymnasium in sports projects, gas film storage in logistics projects, etc. This kind of building form integrates architecture, structural mechanics, new materials, mechatronics, automatic control and other technologies, and has broad market prospects. In general, the inflatable membrane structural material is a kind of building material with high strength, high elasticity, lightweight, environmental protection and other characteristics, which is suitable for the construction of various aerated membrane structural buildings.

II Specification parameters:

Items	Inflatable membrane structure materials
Material	0.6mm/0.9mm PVC and polyester
sizes	customization
Occupied area	more than 1000 square meters
techonology	welding
Printing	High quality digital printing, screen printing or hand painting
Accessories	ground base system, fan system, air conditioning system, lighting system
Features	Durable, waterproof, fireproof, anti-fading, anti-gas, anti-ultraviolet
Application	Tennis court structure, football field structure, skating rink structure
pattern	Coated fabric
Commonly used grams	970 (±100) gsm
Common specifications	990D-1100D
width	1.0M-3.2M
Applicable temperature	-30-70℃
Tensile strength	≥ 275 daN/5cm
Tear strength	≥ 12 daN ≥ 10 daN
Qualification Certificate	B1
lacquered	glossy、matte、acrylic or PVDF coating
Supply Type	Made-to-order
Packing Method	kraft paper packing
MOQ	2500m

1. Fabric specifications:

? Material thickness: usually 0.05mm-0.82mm

? Weight (Gsm) : 700-1100g/m2

? Gutter: Built-in gutter system

? Temperature: -40 to +70 (degrees Celsius)

? Tensile strength: 2500-4000N

? Tear strength: 520-580N

? Fire rating: DIN4102 B1/SGS M2

? Wind load: 120 km/h

2, accessories: In the inflatable membrane structure, in addition to the main membrane materials, there are some accessories for supporting, fixing and enhancing the performance of the membrane structure.

2.1 Cable: Cable is one of the important auxiliary parts in the inflatable membrane structure, which is composed of cable body and anchor. In the gas-bearing membrane structure, the cable body is often made of steel wire rope, steel strand and non-metal cable body. The role of the cable is to support and stabilize the membrane structure through the stretching action to ensure its shape and stability.

2.2 Anchors: Anchors are used to fix the cable or membrane material to the foundation or support structure to ensure the stability and safety of the membrane structure.

2.3 Aeration equipment: The aeration equipment is an essential accessory in the aeration membrane structure, which is used to aerate the inside of the membrane structure to maintain its shape and stiffness. Common inflating equipment includes air pumps, fans and so on.

2.4 Control system: The control system is used to monitor and control the pressure, temperature and other parameters inside the inflatable film structure to ensure its normal operation and safety performance. A control system usually includes components such as sensors, controllers and actuators.

2.5 Spare membrane material: Spare membrane material is used to replace the membrane structure in time when it is damaged or needs to be replaced to ensure the continuity and safety of the inflatable membrane structure.

It is important to note that different aerated membrane structures may use different accessories and materials, depending on their design, use and performance requirements. Therefore, in the design and construction of the inflatable membrane structure, the appropriate accessories and materials should be selected according to the actual situation, and follow the relevant standards and specifications for design and construction.

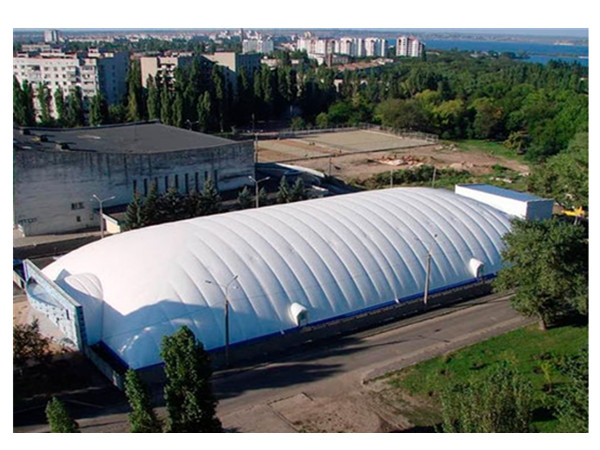

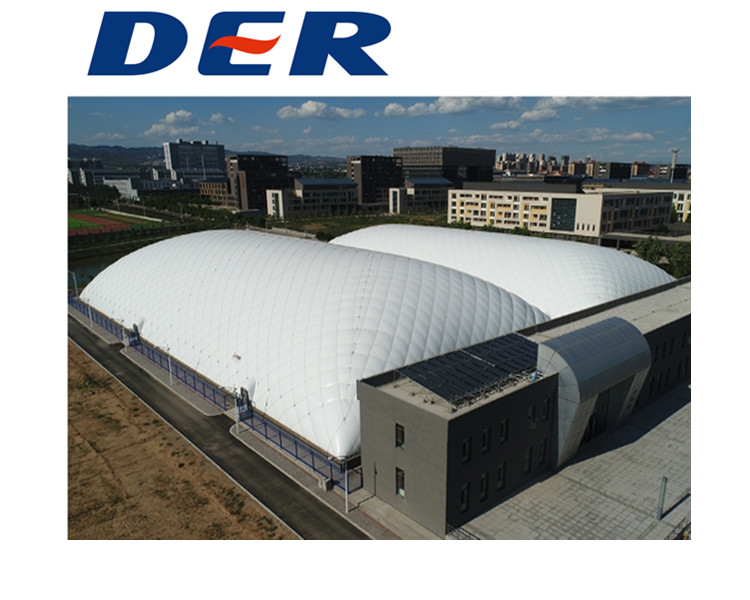

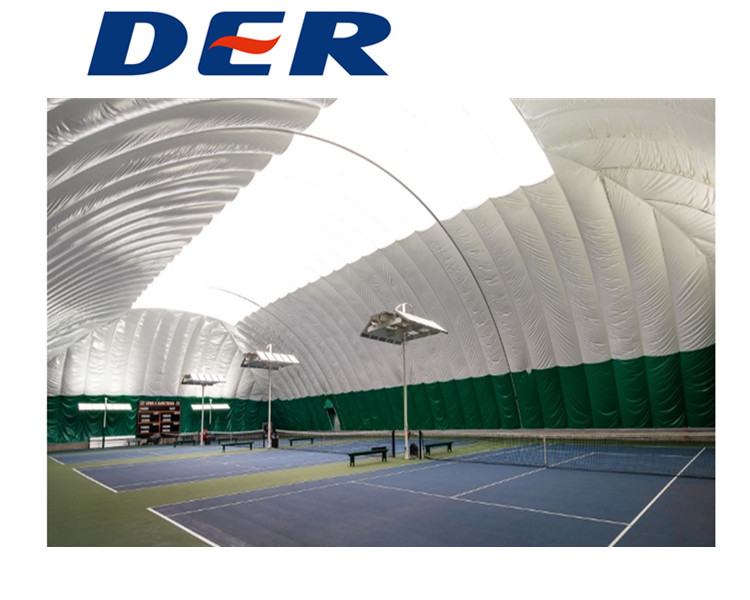

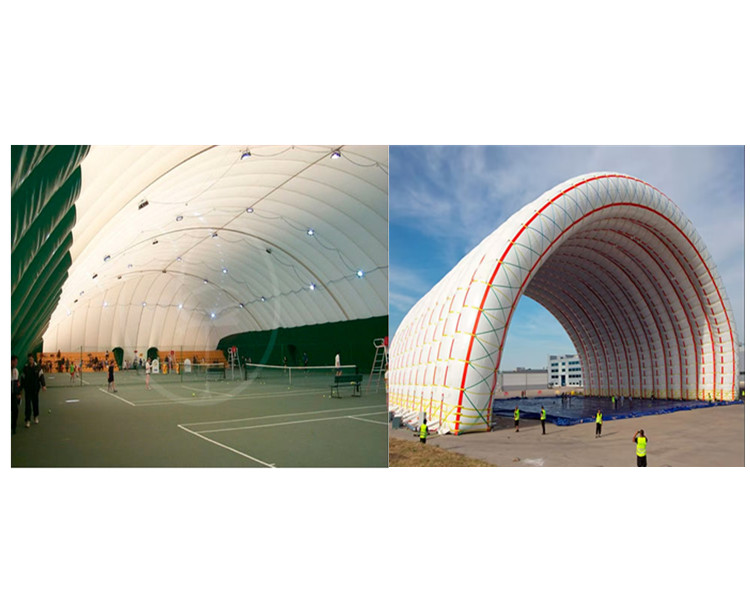

Finished product display:

4, the quality of the finished product comparison: compared with the inflatable tent, the air structure has a longer life and is more durable, but the price is also higher. The air structure usually covers a large area and is used for sports competitions such as tennis court structure, football field structure, and ice rink structure. We have a variety of combinations to suit your different uses and budgets.

III Product Application

Inflatable membrane building material is the most common building membrane material in our daily life, our PVC inflatable membrane is widely used in parking shed, gas station ceiling, high-speed entrance canopy, sports stadium canopy, swimming pool canopy, outdoor landscape canopy, sports stand canopy and so on. PVC film is made of polyester fabric as the base material and coated. In order to solve the self-cleaning problem of PVC film, PVDF (polyvinylidene fluoride) is usually coated on the PVC coating, that is, PVDF film. At present, the most commonly used building membrane material in domestic membrane structure is PVDF membrane material. PVDF membrane can withstand all kinds of weather changes and has excellent UV protection, excellent tensile properties and tear strength, and a wide range of light transmission options. In addition, the PVDF membrane is available in a variety of colors to create a colorful and chic architectural appearance.
